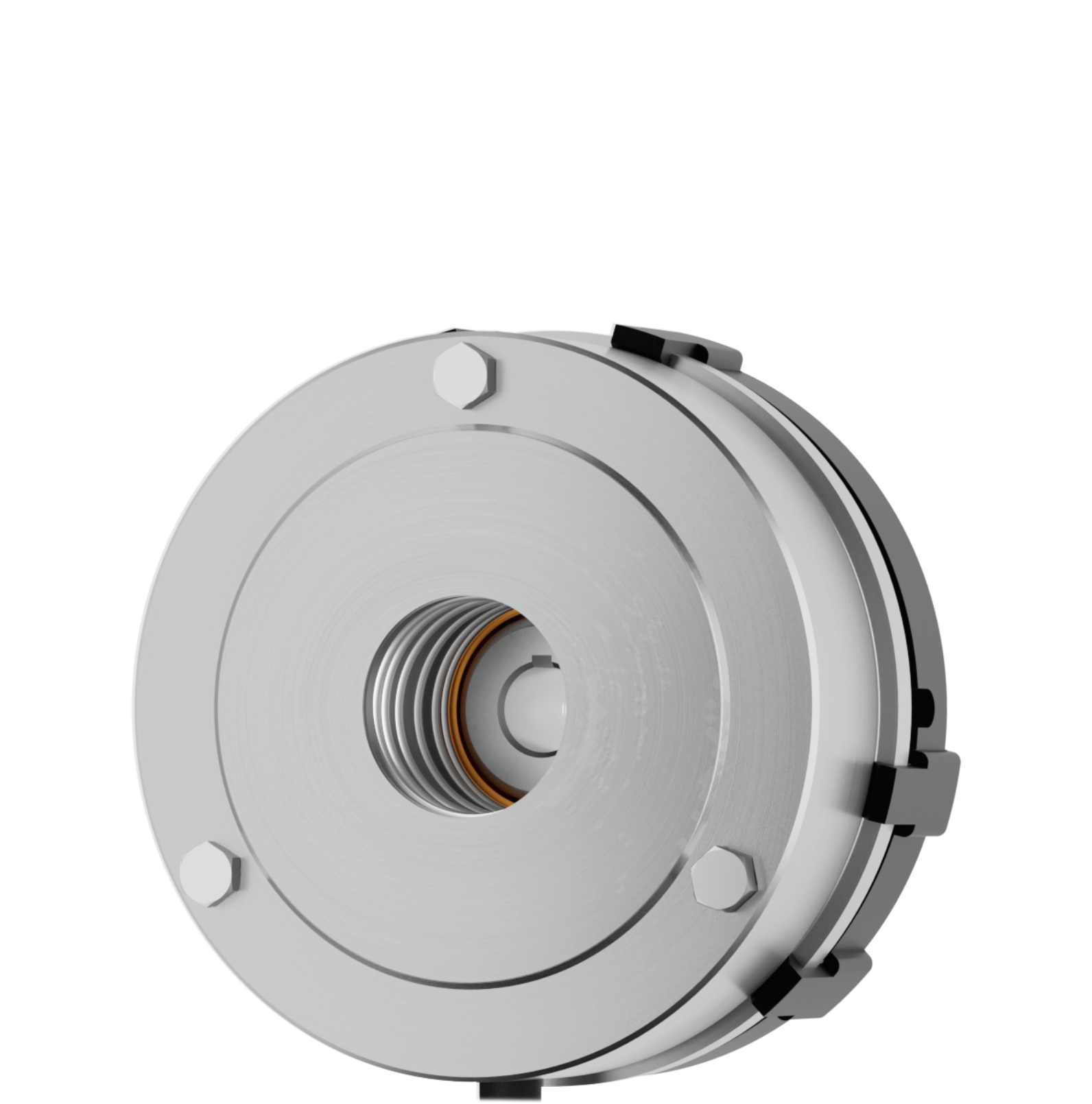

FLC Inexpensive holding brake

0,5-5 Nm

Brake torque

IP54

Protection class

This series consists of 3 sizes as standard. The FLC brake is designed as a holding brake with emergency stop properties or for applications with low friction work.

Frequently used in these industries

Medical technology

Magnetic brakes and magnetic clutches for medical technology

MRT Medizintechnik Magnetbremse Sicherheitsbremse Federkraftbremse

Stairlifts

Electromagnetic spring-applied brakes for everyday mobility

Treppenlift Magnetbremse Sicherheitsbremse

Specifications

Size	Braking torque [Nm]	Outer diameter [mm]	Height [mm]
05	1	59	30
06	2	69	32
08	5	84	38,5

Dimensions in the table [mm]
* Tolerances of the braking torques, see operating and assembly instructions
** Keyway according to DIN 6885, sheet 1
Holding brakes = standard braking torque Mb * 1.5
Installation position of the hub according to the operating and assembly instructions

Options

Mounting flange
Sealing cap
